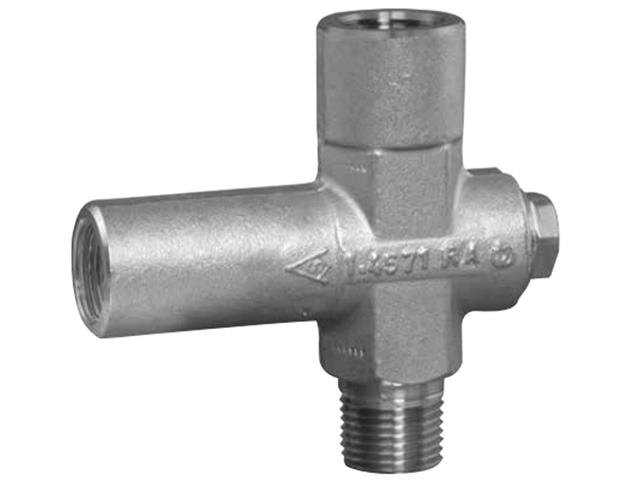

50681265 Wika 50681265 Overpressure Gauge Protector Model 910.13 725 to 3625 PSI Factory-set 1/2 NPTF X 1/2 NPTM Stainless Steel50681265 Wika 50681265 Overpressure Gauge Protector Model 910.13 725 to 3625 PSI Factory-set 1/2 NPTF X 1/2 NPTM Stainless Steel
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

50681265

Wika 50681265 Overpressure Gauge Protector Model 910.13 725 to 3625 PSI Factory-set 1/2 NPTF X 1/2 NPTM Stainless Steel

Overpressure Gauge Protector

Manufacturer Wika
Part Number 50681265
Availability Out of Stock Discontinued
UOM EA

Description:
The overpressure protector consists of a spring loaded piston valve. Under normal pressure conditions the spring holds the valve open. When the system pressure exceeds the set pressure, the force exerted by the spring is overcome and the valve closes. The valve will remain closed until the system pressure drops approximately 25% below the closing pressure, where-upon the force of the spring will open the valve. To change pressure setting: S Turn adjusting screw clockwise ⇒ closing pressure higher. Turn adjusting screw counter clockwise ⇒ closing O-Ring pressure lower. Overpressure protectors must not be used as process control devices.
Email this page to a friend


Product Attributes


UOM:
EA
Connection Size:
1/2 NPTF X 1/2 NPTM
Gauge Pressure Range:
725 to 3625 PSI Factory-set
Material:
Stainless Steel
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Series:
910.13
Maximum Temp Rating:
176°F
Manufacturer:
Wika
Application:
Adjustable overpressure protectors are intended to protect pressure gauges against the effect of pressures exceeding their maximum pressure rating. Stainless steel version for corrosive pressure media, even in corrosive ambience. Process industry: mechanical engineering and plant construction, chemical/petro-chemical, power stations, mining, on- and offshore, environmental technology.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
