Click Image to Zoom

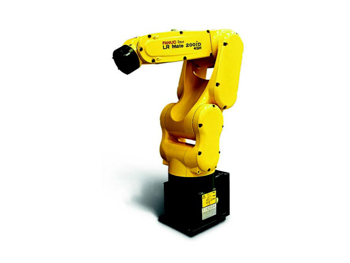

LR MATE 200ID/4SH FANUC LR Mate 200iD/4SH Versatile Intelligent Mini RobotLR MATE 200ID/4SH FANUC LR Mate 200iD/4SH Versatile Intelligent Mini Robot
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

LR MATE 200ID/4SH

FANUC LR Mate 200iD/4SH Versatile Intelligent Mini Robot

Manufacturer FANUC America
Part Number LR MATE 200ID/4SH
Availability Out of Stock Call to order
UOM EA

Description:
FANUC’s LR Mate Series of human arm-sized robots are your best compact solution for fast handling and processing parts up to 7 kg across a whole range of industries. FANUC LR Mates are available in several models including food, clean room and wash-proof versions, each with different reaches and wrist speeds to meet your specific needs. These robots can be equipped with an array of intelligence features including vision & force sensing functionality for even higher levels of accuracy and productivity.

• Stronger and faster
LR Mate 200iD models are available with reaches up to 911 mm, a max. load capacity of 7 kg and a calculated TCP speed of 11 meters/second maximum. Connectors on axis J3 provide increased system flexibility, internal cable routing, and increased reliability and performance.

• More throughput
LR Mate's powerful servo motors and very rigid arm deliver high acceleration and short cycle times, providing users with improved productivity rates. LR Mate saves you time, with robot connections provided on the underside of axis 1 to ensure minimal interference with peripheral devices.

• Unique flip over capability
The solution for reduced cycle times, more flexible cell designs, full work envelope in upside down mounting and the ability to run several robots close together.
Email this page to a friend


Product Attributes


UOM:
EA
Max Load Capacity at Wrist:
4 kg
Max Reach:
550mm
Controlled Axes:
5
Configuration:
4SH
Mount:
Floor, Upside Down, Angle
Mechanical Weight:
19 kg
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Component Type:
Articulated Robots
Series:
LR Mate 200
Repeatability +/-:
0.01
Version:
iD
Manufacturer:
FANUC America
Additional Specifications:
To view a full product information see product resources section on this page
Specific Application:
Assembly, Picking/Packaging, Machining/Loading, Material Removal, and Dispensing

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.


Part Number Tags: LRMATE200ID/4SH
